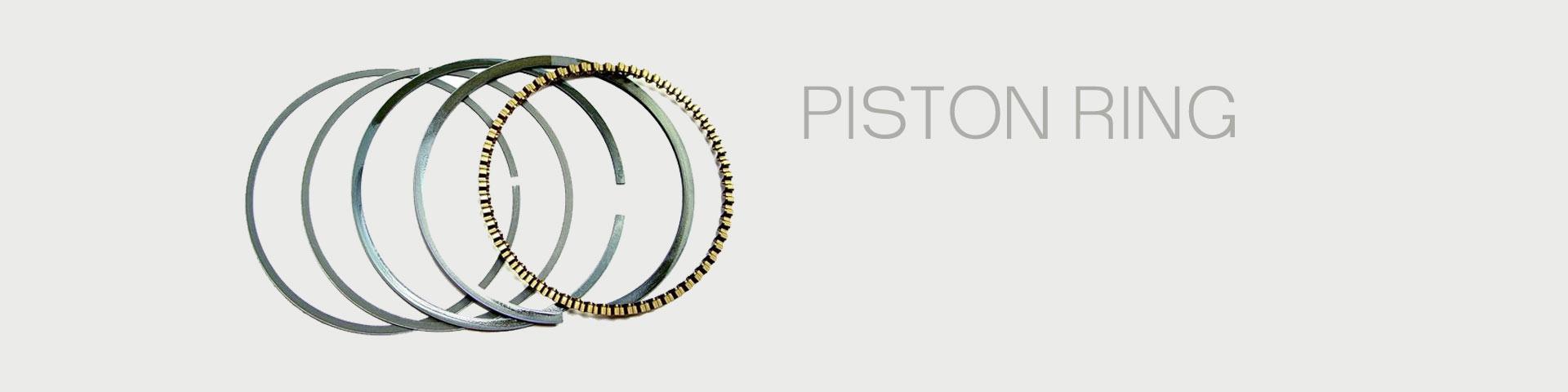

PISTON RING



Code No. Name Ring Specification Application
3167 TKDCES DEUTZ 413 F
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
KV1
3.000
0.35-0.60
2nd
STD
2.500
0.35-0.60
3rd
STD
4.000
0.30-0.60
DEUTZ DEUTZ
FL413
3167 TKMOCES DEUTZ 413 F
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
KV1
3.000
0.35-0.60
2nd
STD
2.500
0.35-0.60
3rd
STD
4.000
0.30-0.60
DEUTZ DEUTZ
FL413
3132 TIDCES LOMBARDINI 520
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
KV1
2.000
0.25-0.40
2nd
STD
2.000
0.25-0.40
3rd
STD
4.000
0.20-0.35
GREAVES
LOMBARDINI 520
3133 TIDCES 3133 TIDCES LOMBARDINI 530 /
310
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
KV1
2.000
0.25-0.40
2nd
STD
2.000
0.25-0.40
3rd STD 2.000 0.25-0.40
4th
STD
5.000
0.20-0.35
GREAVES
LOMBARDINI 530 /
310
3135 TIDCES GREAVES LDA 510
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
KV1
2.500
0.30-0.55
2nd
STD
2.000
0.30-0.55
3rd STD 4.000 0.25-0.50
GREAVES
GREAVES LDA 510
2029TKIDCES GREAVES GL 400
AVL
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
KV1
2.000
0.20-0.35
2nd
IKA
2.000
0.50-0.70
3rd STD 3.000 0.25-0.50
GREAVES
GREAVES GL 400
AVL
2021TIDCES GREAVES GL 400
AVL
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
IKA
2.000
0.30-0.50
2nd
STD
2.000
0.30-0.50
3rd STD 4.000 0.25-0.50
1st
IKA
2.000
0.30-0.50
2nd
STD
2.000
0.30-0.50
3rd STD 4.000 0.25-0.50
GREAVES
GREAVES GL 400
AVL
2021TIDCES GREAVES GL 400
AVL
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
IKA
2.000
0.30-0.50
2nd
STD
2.000
0.30-0.50
3rd STD 4.000 0.25-0.50
1st
IKA
2.000
0.30-0.50
2nd
STD
2.000
0.30-0.50
3rd STD 4.000 0.25-0.50
GREAVES
GREAVES GL 400
AVL
4170 DCES INDUSTRIAL
ENGINE 70 DIA
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.20-0.40
2nd
STD
2.500
0.20-0.40
3rd STD 2.500 0.20-0.40
4th
STD
4.000
0.20-0.40
INDUSTRIAL
INDUSTRIAL
ENGINE 70 DIA
4170P INDUSTRIAL
ENGINE 70 DIA
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.20-0.40
2nd
STD
2.500
0.20-0.40
3rd STD 2.500 0.20-0.40
4th
STD
4.000
0.20-0.40
INDUSTRIAL
INDUSTRIAL
ENGINE 70 DIA
3516C INDUSTRIAL
ENGINE 75 DIA
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.000
0.20-0.40
2nd
STD
2.000
0.20-0.40
3rd STD 2.000 0.20-0.40
INDUSTRIAL
INDUSTRIAL
ENGINE 75 DIA
3171CP INDUSTRIAL
ENGINE 102 DIA
(5RV)
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.20-0.35
2nd
STD
2.500
0.20-0.35
3rd STD 4.500 0.20-0.35
INDUSTRIAL
INDUSTRIAL
ENGINE 102 DIA
(5RV)
3171DCES INDUSTRIAL
ENGINE 102 DIA
(5RV)
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.20-0.35
2nd
STD
2.500
0.20-0.35
3rd STD 4.500 0.25-0.40
3th STD 4.500 0.25-0.40
INDUSTRIAL
INDUSTRIAL
ENGINE 102 DIA
(5RV)
3171P INDUSTRIAL
ENGINE 102 DIA
(5RV)
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.20-0.35
2nd
STD
4.500
0.20-0.35
INDUSTRIAL
INDUSTRIAL
ENGINE 102 DIA
(5RV)
3913 DCES INDUSTRIAL
ENGINE 102 DIA
(4RV)
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
3.000
0.35-0.60
2nd STD 3.000 0.35-0.60
3rd STD 3.000 0.35-0.60
4th
STD
5.000
0.35-0.65
INDUSTRIAL
INDUSTRIAL
ENGINE 102 DIA
(4RV)
3540 DCES INDUSTRIAL
ENGINE 114.3 DIA
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
3.160
0.25-0.50
2nd STD 3.160 0.25-0.50
3rd STD 4.747 0.25-0.45
4th
STD
4.747
0.25-0.50
INDUSTRIAL
INDUSTRIAL
ENGINE 114.3 DIA
3505 KIRLOSKAR,LKA 27
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.25-0.40
2nd STD 2.500 0.25-0.40
3rd STD 2.500 0.20-0.35
KIRLOSKAR
KIRLOSKAR,LKA 27
3505C KIRLOSKAR,LKA 27
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.25-0.40
2nd STD 2.500 0.25-0.40
3rd STD 2.500 0.25-0.40
4th STD 5.000 0.20-0.35
KIRLOSKAR
KIRLOSKAR,LKA 27
3532C KIRLOSKAR AV33
LJA
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.30-0.50
2nd STD 2.500 0.30-0.50
3rd STD 2.500 0.30-0.45
4th STD 5.000 0.25-0.50
KIRLOSKAR
KIRLOSKAR AV33
LJA
3532DCB KIRLOSKAR AV33
LJA
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.30-0.50
2nd STD 2.500 0.30-0.50
3rd STD 2.500 0.30-0.45
KIRLOSKAR
KIRLOSKAR AV33
LJA
3507 KIRLOSKAR AV33
LJA
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.30-0.50
2nd STD 2.500 0.30-0.45
3rd STD 5.000 0.25-0.50
KIRLOSKAR
KIRLOSKAR AV33
LJA
3507C KIRLOSKAR AV33
LJA
Type Material Axial
Height
(mm)
End
Gap
(mm)
1st
STD
2.500
0.30-0.50
2nd STD 2.500 0.30-0.50
3rd STD 2.500 0.30-0.45
4th STD 5.000 0.25-0.50
KIRLOSKAR
KIRLOSKAR AV33
LJA


These parts are WINDSOR parts and not manufactured by OEM's. Original manufacturer's parts picture, name, part members and descriptions are quoted for reference only and are not intended to indicate or suggested that replacement parts are made by the OEM.
